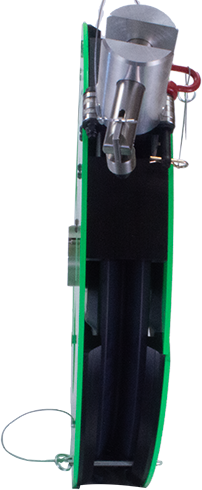

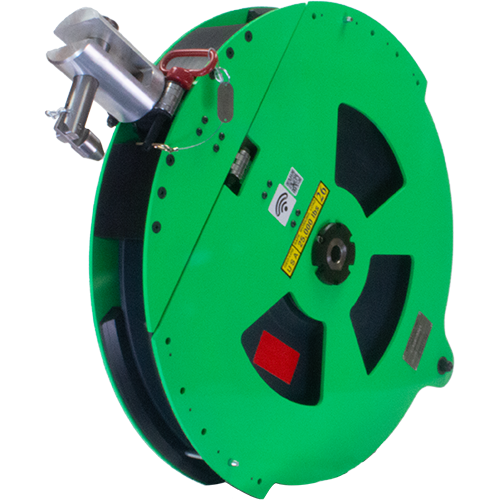

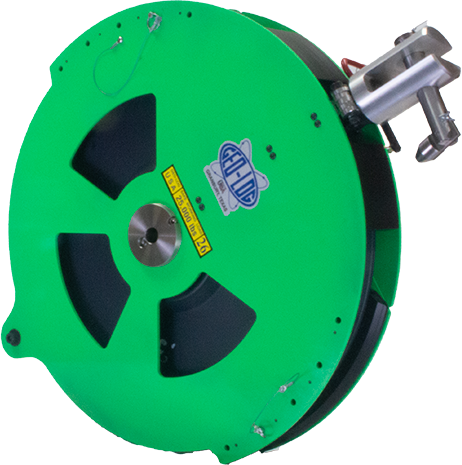

Introducing the GLS 26v3 sheave
Now with a wider wheel for even more rigidity and strength.
A deeper groove engineered to extend the life of the cable.
Designed with safety in mind from the ground up.
Engineered for performance: it’s rugged, corrosion-resistant, and completely serviceable.
Incredibly easy on your cable on the cable thanks to its composite components.
A sleek, modern design that performs as well as it looks.
- Light weight frame.
- Composite cable guards.
- Fully serviceable, side-load resistant bearings.
- No-hassle line loading.
- Corrosion resistant components throughout.
- Highly versatile clevis and pin assembly.
- QR code and NFC tag for fast service history.
- Wheel diameter: 26 inches
- Overall diameter: 29.5 inches
- Conventional cable (e-line) compatibility: v7/32, 9/32, 5/16
- Coated cable compatibility: EcoSeal, StreamLINE, EnviroLite
- Weight: 93 pounds
- Width: 4.5 inches
- Height (not including clevis): 31.1 inches
- Groove diameter .332 - .360 inches
- Material specifications: T6 aluminum, stainless steel, composite
- Maximum safe working loading: 25,000 pounds
